The Settings tab is the place for server administrators to configure the way Ninja Bot interacts with their server, allowing them to set specific limits/assignments/etc. for various modules of the bot. To make this possible, settings are dynamically rendered, consumed, and validated based off of a JSON schema as detailed below.

Get Guild Settings

Gets the settings schema data for the current server.

Top-level format

At the highest level, the Settings schema is composed of an array of category definitions, each of which contain one or more settings cards:

{
  "categories": [
    ...
  ]
}

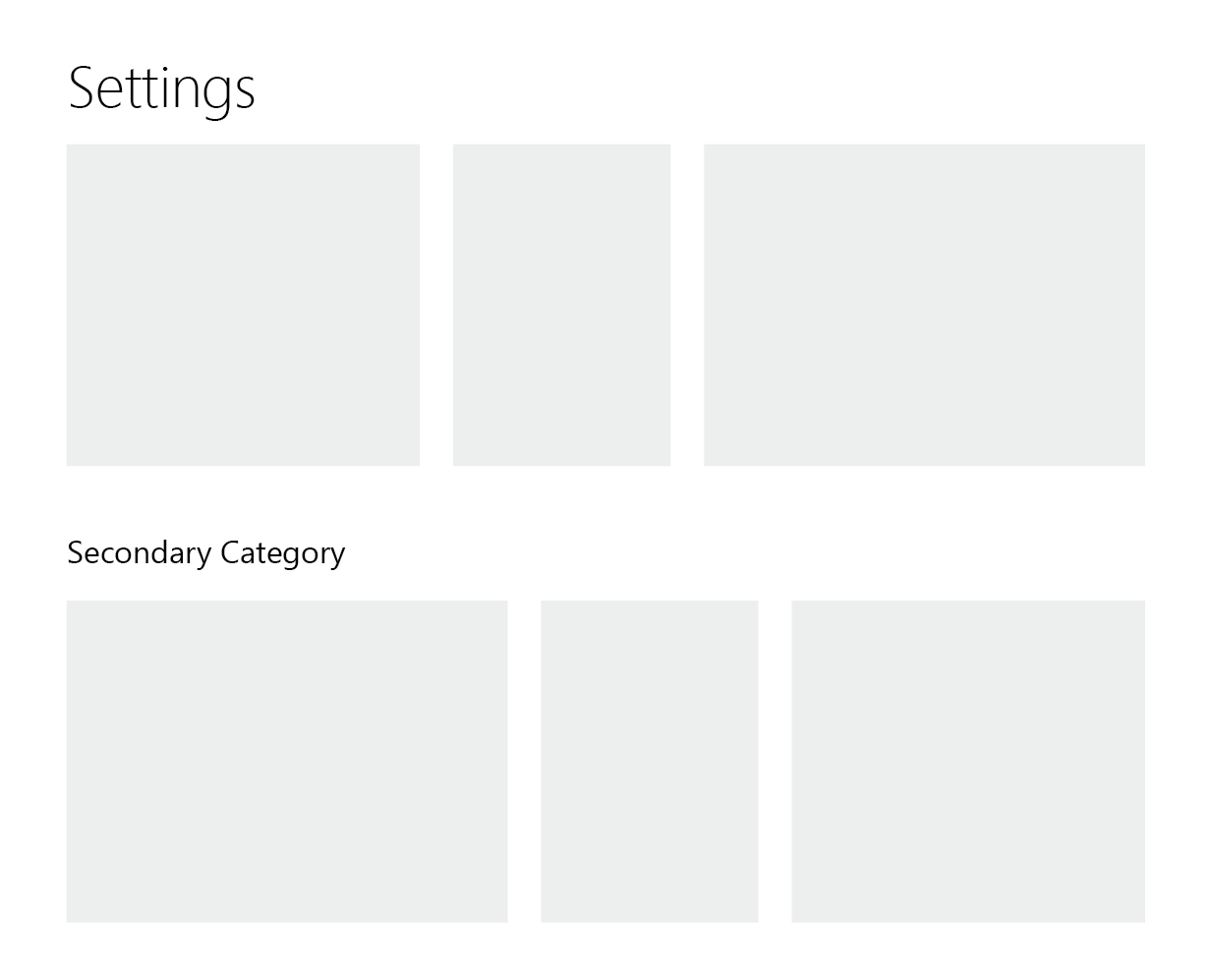

The reasoning behind having a top-level organization scheme of the category is to support a view that looks something like the following mockup, where multiple vertical sections would be possible, enabling large collections of settings to be effectively categorized.

Category Mockup

Category Object

Category Structure
Field Type Description
title? string if non-null, then this category will appear separate from the global category
cards array of setting card objects child cards within the category

Each card is configured individually, representing a collection of individual settings that fall under a given topic.

Card Object

Card Structure
Field Type Description
title string title string that appears at the top of the card once rendered
settings array of setting objects individual settings fields that are listed once rendered, ordered from top to bottom
width? integer relative width of the card, must be in the interval [1, 10]
Card Example
{
  "title": "Gulag",
  "width": 5,
  "settings": [
    {
      "id": "gulag_command",
      "label": "Command",
      "input_type": "string",
      "default": "gulag"
    },
    ...
  ]
}

Settings

In order to be consumed on both the backend and the frontend, each Setting object contains a variety of information related to each setting entry.

Setting Object

Setting Structure
Field Type Description
id string internal unique (among all settings) key used to access the setting across the application
label string display text shown to the left of each setting (Fewer than 25 characters)
input_type string enum type of input component used on the frontend. One of ["string", "numeric", "string_auto_complete", "string_highlighted", "switch", "string_array_auto_complete"]
default any initial value of the setting used for newly initialized guilds
value any current value of the setting
help_tooltip? string text content of an optional component
properties? object key-value pairs passed as props to the input component
validation_steps? array of Unionvalidation objects> chain of validation steps necessary for the setting value to pass, ran on both the frontend and backend, unless otherwise specified (see object information). If a string, then the value represents the key of the individual step
cli? cli object if non-null, then includes the individual setting in the list of settings that can be edited in the Discord client using the !settings/?settings command
#### Values

The values for each field are stored in a separate object, which is a flat dictionary mapping entry IDs to their corresponding value. This allows the client or server to update the values of the settings without resending the entire schema.

Setting Example
{
  "id": "starboard_threshold",
  "label": "Starboard Threshold",
  "input_type": "numeric",
  "default": 5,
  "value": 6,
  "properties": {
    "min": 0,
    "integer": true
  },
  "validation_steps": [
    "isNumber",
    "isInteger",
    { "key": "isInRange", "min": 0 }
  ],
  "cli": {
    "name": "Starboard Threshold",
    "emoji": "⭐",
    "message": "⭐ This is the number of reacts a message...",
    "input_mode": "replace"
  }
}

Validation Object

Validating the data is important on both the backend (for data safeguarding) and the frontend (for UX), so a processing chain model is used to allow for symmetry in validation logic. Each validation entry can either be a simple string, in which case this value represents the same thing as its expanded object form. For example, "isArray" is equivalent to:

{
  "key": "isArray"
}
Validation Structure
Field Type Description
key string dictionary key used to access function definitions when consumed
...rest? object additional named (unordered) arguments passed to the validation function
Validation Example
{
  "key": "any",
  "of": [
    [
      {
        "key": "matchesRegex",
        "regex": "^$"
      }
    ],
    [
      {
        "key": "matchesRegex",
        "regex": "(?:^@.+$)|^(?:^[0-9]{7,20}$)"
      },
      "isRole"
    ]
  ]
}

Common Validation Functions

Discord-specific Validation Functions

Each of the following functions works with Discord entities, and examines whether they exist in the context of the current guild. The objects can be resolved by either their snowflake ID or their serialized forms (see below)

CLI Object

CLI Structure
Field Type Description
name string name of the setting as displayed in the CLI menu embed
emoji unicode emoji string reaction emoji used to select this setting in the CLI menu embed (also appears to the left of the name)
message string prompt string displayed in edit mode
input_mode string enum type of method used to update the value from the CLI. One of ["replace", "array_toggle"]

Example Schema

Note that this is out of date

embed:internal/modules/settings/example-schema.json
